Are you choosing a ball bearing for a project?Do you need to understand the difference between single row and double row types? Picking the right ball bearing is key for performance and longevity. This post will explain the differences. We will cover applications, load capacities, and more. Let’s dive in.
What is a Ball Bearing?

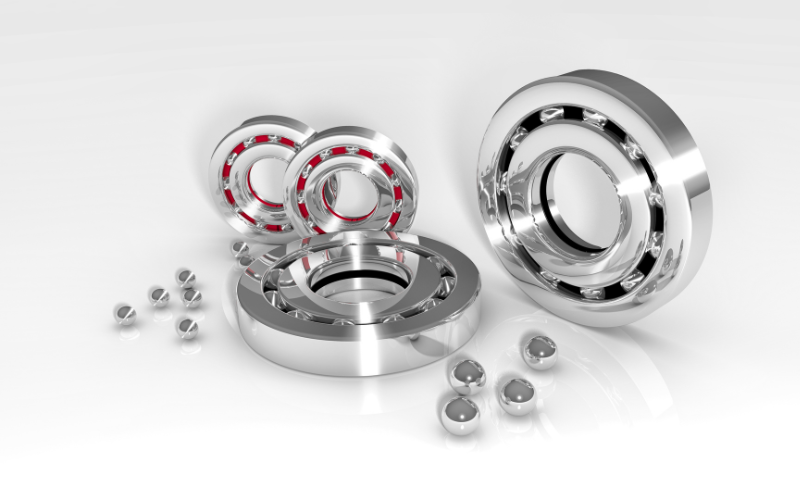

A ball bearing is a type of rolling-element bearing. It uses balls to maintain separation between the bearing races. This reduces rotational friction. It also supports radial and axial loads. Ball bearings are common in many machines. Examples include cars, motors, and pumps. They are efficient and versatile.
Single Row Ball Bearing: Simple and Effective
A single row ball bearing has one row of balls. These balls sit between the inner and outer races.
Advantages of Single Row Ball Bearings
- Simple Design: Easy to install and maintain.
- Cost-Effective: Generally cheaper than double row options.
- High Speed Capability: Works well in high-speed applications.
- Low Friction: Provides smooth and efficient operation.
Disadvantages of Single Row Ball Bearings
- Lower Load Capacity: Can’t handle very heavy loads.
- Limited Axial Load Capacity: Not ideal for high thrust loads.
- Less Robust: May wear faster under heavy stress.
Common Applications for Single Row Ball Bearings
- Electric Motors: Found in many types of motors.
- Gearboxes: Used in lighter-duty gear systems.
- Pumps: Suitable for certain pump designs.
- Skateboards and Bicycles: Allows wheels to rotate smoothly.
- Small Appliances: Toasters and blenders.
Double Row Ball Bearing: Power and Stability
A double row ball bearing has two rows of balls. These balls sit between the inner and outer races. This design offers increased load capacity.
Advantages of Double Row Ball Bearings
- Higher Load Capacity: Handles heavier radial and axial loads.
- Increased Rigidity: Provides more support and stability.
- Better Misalignment Compensation: Tolerates shaft misalignment better.
Disadvantages of Double Row Ball Bearings
- Higher Cost: More expensive than single row options.
- More Complex Design: Harder to install and maintain.
- Lower Speed Capability: Not ideal for very high-speed applications.
- Higher Friction: Can generate more heat compared to a single row.
Common Applications for Double Row Ball Bearings
- Automotive Applications: Wheel bearings, steering systems.
- Heavy Machinery: Construction equipment, agricultural machinery.
- Pumps: Larger, more demanding pump designs.
- Gearboxes: High-torque gear systems.
- Industrial Fans: Large industrial fans.
Key Differences Summarized
Here’s a quick comparison table:
| Feature | Single Row Ball Bearing | Double Row Ball Bearing |
|---|---|---|
| Load Capacity | Lower | Higher |
| Speed Capability | Higher | Lower |
| Cost | Lower | Higher |
| Complexity | Simpler | More Complex |
| Rigidity | Lower | Higher |
| Misalignment Tolerance | Lower | Higher |
| Common Applications | Small Motors, Light Pumps | Automotive, Heavy Machinery |
Choosing the Right Ball Bearing
Consider these factors when choosing a ball bearing:
- Load Requirements: How heavy are the loads? Is it mostly radial or axial?
- Speed Requirements: How fast will the bearing rotate?
- Space Constraints: How much space is available for the bearing?
- Budget: How much can you spend on the ball bearing?
- Operating Environment: What are the temperature and contamination levels?
For light loads and high speeds, a single row ball bearing is often best. For heavier loads and greater rigidity, a double row ball bearing is the better choice. Always consult with a bearing specialist if you are unsure.
Example: A skateboard wheel needs a single row ball bearing. It handles relatively light loads at high speeds. An automotive wheel bearing needs a double row ball bearing. It handles heavier loads and provides stability.
Bearing Materials and Lubrication
The material and lubrication impact performance. Common materials include steel, stainless steel, and ceramics. Lubrication reduces friction and wear. Choose a lubricant suited to the operating conditions. Grease lubrication is good for general purposes. Oil lubrication is better for high-speed applications.
Industry Trends and Innovations
The ball bearing industry is constantly improving. Innovations include:
- Hybrid Bearings: Using ceramic balls for higher speeds and longer life.
- Sealed Bearings: Protecting against contamination.
- Sensor-Integrated Bearings: Monitoring performance in real-time.
These innovations provide more efficient and reliable operations.
Ball Bearing Maintenance
Proper maintenance extends the life of a ball bearing. Follow these tips:
- Regular Lubrication: Apply lubricant as recommended.
- Proper Installation: Follow installation guidelines carefully.
- Avoid Overloading: Do not exceed the bearing’s load capacity.
- Inspect Regularly: Check for signs of wear or damage.
- Keep Clean: Prevent dirt and debris from entering the bearing.
Conclusion
Choosing between a single row and double row ball bearing depends on your specific needs. Consider the load, speed, space, and budget. With the right choice and proper maintenance, your ball bearing will provide reliable performance for years to come.
Ready to choose the right ball bearing? Contact KG India for expert advice!
FAQs About Ball Bearings
The main difference is the load capacity. Double row ball bearings handle heavier loads. Single row ball bearings are for lighter loads.
Use a single row ball bearing for high-speed applications with light to medium loads. Cost is also a key factor.
Use a double row ball bearing for heavier loads where rigidity is needed.
Yes, if space allows and the application requires higher load capacity.
Grease is good for general use. Oil is better for high-speed applications.
Follow the manufacturer’s recommendations for lubrication frequency. It varies.
Common causes include contamination, overloading, and improper lubrication.
Common materials are steel, stainless steel, and ceramics.
You can buy ball bearings from authorized distributors and reputable bearing manufacturers like KG India.
